BARIATRIC BEDS		 Home

KING�S PRIDE 1000

BED WIDTHS:

TWIN MODEL MODEL
38� X 80� KP38801

CONVERTIBLE MODEL
38/48� X 80� KP3848801

THREE QUARTER MODEL
48� X 80� KP48801

FULL MODEL
54� X 80� KP54801

QUEEN MODEL
60� X 80� KP60801

WEIGHT: FULL 1000 LBS. PATIENT CAPACITY

DECK HEIGHT: LOW POSITION 15 1/4�
HIGH POSITION 24 1/2�



Cardio Chair Position
Trendelenberg Position

FEATURES:

  • MULTIPLE POSITIONING
  • TRENDELENBERG
  • REVERSE TRENDELENBERG
  • CARDIO CHAIR
  • INDEPENDENT HEAD & KNEE GATCH FOR PERSONALIZED POSITIONING
  • FOOT SECTION DOES NOT PITCH DOWN BUT PLATEAUS TO REDUCE EDEMA OF LOWER EXTREMITIES


 MATTRESS: (Included)

  • 6� FIRM COMFORT FOAM MATTRESS
  • CERTIFIED FOR TECHNICAL BULLETIN CAL TB 129
  • CERTIFIED FOR TECHNICAL BULLETIN CAL TB 603
  • Complies with the requirements of 16 CFR 1633
  • VENTREX TICKING (#1 LEADING HOSPITAL MATTRESS TICKING IN AMERICA)
  • ANTI-BACTERIAL
  • ANTI-FUNGAL
  • FLUID RESISTANT
  • FLAME RETARDANT
  • HAS EXTREMELY LOW VAPOR TRANSMISSION


 OPTIONS:

  • SCALE/LOAD CELL/DIGITAL DISPLAY����..MODEL: SC1000
  • SIDE RAILS/HEAVY DUTY���������...MODEL: RA01920
  • BED MOUNTED TRAPEZE���������...MODEL: TRKP1000
  • EXTENDED LENGTH/86����������� ..MODEL: KP100086
  • EMERGENCY BATTERY BACK-UP������MODEL: EBU01
  • NURSE LOCK-OUT������........................MODEL: NLO
  • ASSIST GRAB BAR..........................................MODEL: ASSTGRB
  • Side Rails/High/Heavy Duty...........................�.MODEL: RA01920EX

PATIENT CONTROL:

  • 8 BUTTON CONTROL FOR ALL FUNCTIONS
  • LOW VOLTAGE
  • LOW ENERGY
  • HIGH IMPACT RESISTANT CASE

ELECTRONICS:

  • ELECTRONICS COMPLETELY ENCLOSED
  • FULLY GROUNDED, WITH HOSPITAL GRADE, 3 PRONG, HEAVY DUTY PLUG AND CORD
  • ELECTRONICS AND MOTORS UL LISTED
  • VOLTAGE 115V

LOW BED 800


BED WIDTHS:

MODEL: LB3848
SIZE: 38� X 80� CONVERTS TO 48� x 80�



WEIGHT: FULL 1000 LBS. PATIENT CAPACITY

DECK HEIGHT: LOW POSITION 9�
HIGH POSITION 24�


Cardio Chair Position
Trendelenberg Position

FEATURES:

  • MULTIPLE POSITIONING
  • TRENDELENBERG
  • REVERSE TRENDELENBERG
  • CARDIO CHAIR
  • INDEPENDENT HEAD & KNEE GATCH FOR PERSONALIZED POSITIONING
  • FOOT SECTION DOES NOT PITCH DOWN BUT PLATEAUS TO REDUCE EDEMA OF LOWER EXTREMITIES


 MATTRESS: (Included)

  • 6� FIRM COMFORT FOAM MATTRESS
  • CERTIFIED FOR TECHNICAL BULLETIN CAL TB 129
  • CERTIFIED FOR TECHNICAL BULLETIN CAL TB 603
  • VENTREX TICKING (#1 LEADING HOSPITAL MATTRESS TICKING IN AMERICA)
  • ANTI-BACTERIAL
  • ANTI-FUNGAL
  • FLUID RESISTANT
  • FLAME RETARDANT
  • HAS EXTREMELY LOW VAPOR TRANSMISSION


 OPTIONS:

  • SCALE/LOAD CELL/DIGITAL DISPLAY����..MODEL: SCLB800
  • SIDE RAILS/HEAVY DUTY���������...MODEL: RA01920
  • BED MOUNTED TRAPEZE���������...MODEL: TRLB800
  • EXTENDED LENGTH/86�����������.. MODEL: LB86
  • EMERGENCY BATTERY BACK-UP������MODEL: EBULB
  • NURSE LOCK-OUT������........................MODEL: NLO
  • ASSIST GRAB BAR..........................................MODEL: ASSTGRB
  • Side Rails/High/Heavy Duty�............................RA01920EX

PATIENT CONTROL:

  • 8 BUTTON CONTROL FOR ALL FUNCTIONS
  • LOW VOLTAGE
  • LOW ENERGY
  • HIGH IMPACT RESISTANT CASE

ELECTRONICS:

  • ELECTRONICS COMPLETELY ENCLOSED
  • FULLY GROUNDED, WITH HOSPITAL GRADE, 3 PRONG, HEAVY DUTY PLUG AND CORD
  • ELECTRONICS AND MOTORS UL LISTED
  • VOLTAGE 115V



QUEEN�S PRIDE 600LM

EXTRA WIDE � HEAVY DUTY BED

MODEL: QUEEN�S PRIDE 600LM

SIZE MODEL
38� x 80� QP3880
48� x 80� QP4880
54� x 80� QP5480
60� X 80� QP6080

WEIGHT: FULL 750LBS PATIENT CAPACITY

DECK HEIGHT: LOW POSITION 15�
HIGH POSITION 28�
FEATURES:
  • ALL ELECTRIC
  • STEEL PAN DECK�FOR PROPER MATTRESS SUPPORT
  • EASY TOUCH HAND CONTROL 12 VOLT
  • LARGE CAPACITY/EXTRA WIDE
  • ALL ELECTRONICS AND MOTORS UL APPROVED

MATTRESS: (Included)

  • 6� HIGH DENSITY FOAM
  • FIRE BARRIER CERTIFIED FOR TECHNICAL BULLETIN CAL TB 129
  • FIRE BARRIER CERTIFIED FOR TECHNICAL BULLETIN CAL TB 603
  • Complies with the requirements of 16 CFR 1633
  • VENTEX TICKING (#1 LEADING HOSPITAL TICKING IN AMERICA)

MATTRESS COVER:

  • NYLON
  • FLUID RESISTENT
  • ANTI-BACTERIAL
  • FLAME RETARDANT
  • ANTI-FUNGAL

OPTIONS:

  • SIDE RAILS/HEAVY DUTY���������..MODEL: RA01920
  • BED MOUNTED TRAPEZE���������..MODEL: TRQP38/TRQP48/TRQP54/TRQP60
  • SIDE RAILS/HIGH/HEAVY DUTY................MODEL: RA01920EX
  • SCALE/LOAD CELL/DIGITAL DISPLAY���....MODEL: SC600
  • EXTENDED LENGTH/86����������.�.MODEL: QP3886/QP4886/QP5486/QP6086
  • EMERGENCY BATTERY BACK-UP�����..MODEL: EBU600
  • NURSE LOCK-OUT������...................... MODEL: NLO600
  • ASSIST GRAB BAR......................................... MODEL: ASSTGRB

PATIENT CONTROL:

  • 8 BUTTON CONTROL FOR ALL FUNCTIONS
  • LOW VOLTAGE
  • LOW ENERGY
  • HIGH IMPACT RESISTANT CASE

ELECTRONICS:

  • ELECTRONICS COMPLETELY ENCLOSED
  • FULLY GROUNDED, WITH HOSPITAL GRADE, 3 PRONG, HEAVY DUTY PLUG AND CORD
  • ELECTRONICS AND MOTOR UL LISTED
  • VOLTAGE 115V

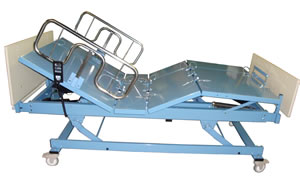

QUEEN�S PRIDE 600LM-CONVERTIBLE



BED WIDTHS: THREE QUARTER MODEL 48� X 80�

MODEL: QP3848

SIZE: 38�x 80� CONVERTS TO 48�x 80�

WEIGHT: FULL 750 LBS. PATIENT CAPACITY

DECK HEIGHT: LOW POSITION 15�
HIGH POSITION 28�



FEATURES:

  • ALL ELECTRIC
  • WEIGHT CAPACITY 750 LBS.
  • STEEL PAN DECK�FOR PROPER MATTRESS SUPPORT
  • EASY TOUCH HAND CONTROL 12 VOLTS
  • ALL ELECTRONICS AND MOTORS UL APPROVED


MATTRESS: (INCLUDED)

  • 6� HIGH DENSITY FOAM
  • CERTIFIED FOR TECHNICAL BULLETIN CAL TB 129
  • CERTIFIED FOR TECHNICAL BULLETIN CAL TB 603
  • COMPLIES WITH THE REQUIREMENTS OF 16 CFR 1633

MATTRESS COVER:

  • NYLON
  • FLUID RESISTENT
  • ANTI-BACTERIAL
  • FLAME RETARDANT
  • ANTI-FUNGAL

OPTIONS:

  • SIDE RAILS/HEAVY DUTY�����������.MODEL: RA01920
  • BED MOUNTED TRAPEZE���.��������MODEL: TRQP3848
  • SCALE/LOAD CELL/DIGITAL DISPLAY�����...MODEL: SC600
  • EXTENDED LENGTH/86�������������.MODEL: QP384886
  • EMERGENCY BATTERY BACK-UP�������.MODEL: EBU600
  • NURSE LOCK-OUT������............................MODEL: NLO
  • ASSIST GRAB BAR...............................................MODEL: ASSTGRB

PATIENT CONTROL:

  • 6 BUTTON CONTROL FOR ALL FUNCTIONS
  • LOW VOLTAGE
  • LOW ENERGY
  • HIGH IMPACT RESISTANT CASE

ELECTRONICS:

  • ELECTRONICS COMPLETELY ENCLOSED
  • FULLY GROUNDED, WITH HOSPITAL GRADE, 3 PRONG, HEAVY DUTY PLUG AND CORD
  • ELECTRONICS AND MOTORS UL LISTED
  • VOLTAGE 115V


SCALE SYSTEM 1226

BIG BOYZ
SCALE SYSTEM 1226
By SR Instruments, Inc.

Model 1226 is a retrofit weighing system that works as a integral part of
All Big Boyz Bed Models turning the entire bed into a precision scale system.


The 1226 Scale System employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. Four (4) identically matched transducers are strategically placed to ensure an accurate representation of the patient�s weight regardless of weight distribution.
The Patient�s weight is displayed on a 16 character dot matrix liquid crystal display with L.E.D. backlighting. Patient weight may be viewed in both POUNDS and KILOGRAMS with the push of a button with a display resolution of 0.1 #/Kg (100 grams). The 1226 also features a WEIGHT CHANGE mode which makes it convenient to monitor the patient�s weight relative to ZERO in order to observe variations in weight. A FREEZE feature is provided to give the added convenience of being able to adjust the patient�s comfort by adding a pillow, book or adjusting the bed without effecting the patient�s displayed weight.

Model Numbers:

  • Low Bed 800: SCLB800
  • Queen�s Pride 600LM: SC600
  • Queen�s Pride 600LM-Convertible: SC600
  • King�s Pride 1000: SC1000

HEAVY DUTY BED RAILS



Our heavy-duty � rails provide the stability needed to help facilitate turning and repositioning. The Big Boyz bed rail has been fabricated to insure the security needed to assist the bariatric patient when transferring in or out of bed.

*All Bed Rails provided by Big Boyz Industries, Inc. meet FDA's recommended Hospital Bed System Dimensional & Assessment Guidance to Reduce Entrapment.



We offer (2) two types of Side Rails:

Standard � Rails

  • 7 �� From top of mattress to top of bed rail.
  • Dimensions: 29 �� X 11�

Model Numbers:

  • Low Bed 800: RA01920/LB
  • Queen�s Pride 600LM: RA01920
  • Queen�s Pride 600LM-Convertible: RA01920/Conv.
  • King�s Pride 1000: RA01920



Extended � Rails (To be used with Low Air Loss mattress)

  • 12 �� From top of mattress to top of bed rail.
  • Dimensions: 29 ��X 16�

Model Numbers:

  • Low Bed 800: RA01920/LB.EX
  • Queen's Pride 600LM: RA01920EX
  • Queen's Pride 600LM-Convertible: RA01920/Conv.EX
  • King's Pride 1000: RA01920EX





EMERGENCY BATTERY BACK-UP
The Big Boyz Battery Back-up is optional for all bed models. This item provides many functions. The optional Battery Back-up permits the bed to be repositioned during patient transfers. This is very important especially if patient codes during transit, bed can be placed in a flat position and CPR can be performed.

The Battery Back-up will last for three (3) days depending on bed control usage. Battery will re-charge once power is restored.

Model Numbers:

  • Low Bed 800: EBULB800
  • Queen�s Pride 600LM: EBU600
  • Queen�s Pride 600LM-Convertible: EBU600
  • King�s Pride 1000: EBU01

MATTRESS

MATTRESS MODEL: BIG BOYZ LITE COMFORT

4 �� XL45 DENSITY FOR TOP AND BOTTOM OF MATTRESS WITH A 1� XL35 DENSITY FOR CENTER CORE. THESE MULTI-LAYERS PROVIDE A 6� THICK MATTRESS.

  •  MATTRESS IS CONSIDERED PRESSURE REDUCING � GROUP 1 BY  MEDICARE�S STANDARDS.
  1. Foam height of 5 inches or greater, and
  2. Foam with a density and other qualities that provide adequate pressure reduction, and
  3. Durable, water Resistant cover, and
  4. Can be placed directly on a hospital bed frame.
  • ALL FOAM IS COMBUSTION MODIFIED TO MEET CALIFORNIA TECHNICAL BULLETIN #117.
  • THIS BARIATRIC MATTRESS IS GUARANTEED TO CRUSH NO MORE THAN 50% - TO PREVENT BOTTOMING OUT.
  • WEIGHT CAPACITY 1000 LBS.

* ALL BED MODELS WILL INCLUDE THE ABOVE MATTRESS UNLESS    PURCHASE ORDER REQUEST NO MATTRESS.

*ALL BEDS ORDERED FOR HEALTHCARE FACILITIES WILL BE FIRE BARRIER PROTECTED.

  • CERTIFIED FOR TECHNICAL BULLETIN CAL TB 129
  • CERTIFIED FOR TECHNICAL BULLETIN CAL TB 603
  • CERTIFIED IN ACCORDANCE WITH ASTM E 1590-99 OPTION B ROOM CONFIGURATION.
  • COMPLIES WITH THE REQUIREMENTS OF 16 CFR 1633

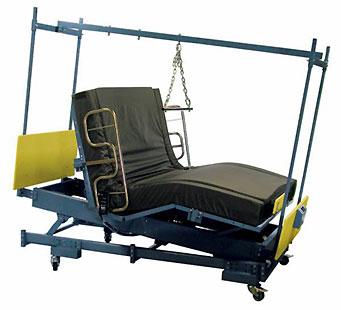

TRAPEZE SYSTEM

The Big Boyz Trapeze is Durable Medical Equipment designed to provide the patient with assistance in changing body positions in addition to entering and exiting bed. The Big Boyz Trapeze has a fracture frame set-up, four (4) posted and bed mounted. This item provides the stability and security needed for the Bariatric population with a 1,000 lb. Patient Weight Capacity.

Model Numbers:

  • Low Bed 800: TRLB800
  • Queen�s Pride 600LM: TRQP38/TRQP48
  • Queen�s Pride 600LM-Convertible: TRQP3848
  • King�s Pride 1000: TRKP1000

Nurse Lock-Out

BIG BOYZ
Nurse Lock-Out

The ACM (Mini attendant Control) box is fitted to hospital and care beds for use where patient positioning must be carefully controlled by the medical staff.

Its compact design and simple operation make it easy for the nursing staff to retain direct control over critical positioning functions while giving the patient a limited degree of adjustment.

Model Numbers:

*Same Model No. (NLO) for all bed models.


BIG BOYZ Assist Bar

The Big Boyz Assist Bar has been designed for those requiring help with standing, shifting or transferring in out of bed. Unlike fixed bed rails the Big Boyz Assist Bar can be utilized in multiple positions without the fear of entrapment.

This device has been specifically fabricated to accommodate the Bariatric population.
