Savaria Stair Lifts

The Savaria K2 stairlift is your best choice for straight stairs in the home. With the smallest folded up size on the market, it is out of the way when not in use, yet ready to carry up to 350 lb whenever you need it. For commercial applications, the Savaria SL-1000 stairlift can be installed for straight stairs to carry up to 350 lb. For curved stairs, intermediate landings or out-of-the-way parking, choose the Savaria Stairfriend.

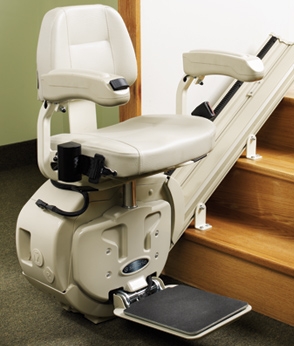

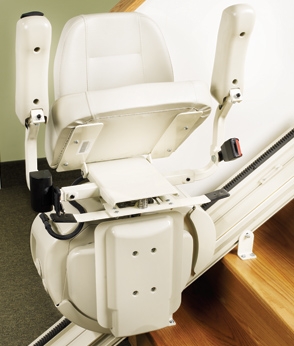

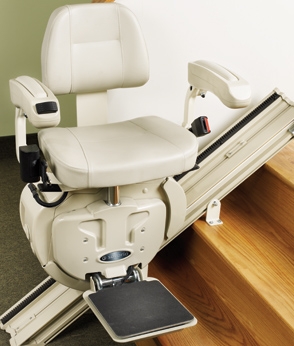

SL-1000 Stairlift

Product Description:

The SL-1000 stairlift works on straight stairs to glide up and down in comfort and safety using the onboard controls or with the help of remote control operation, providing barrier-free access. The Savaria SL-1000 is suitable for commercial applications in most regions. The Savaria SL-1000 installs quickly and easily and its onboard diagnostic display alerts you of any service issues. With its extra comfort seat, adjustable width arms and high capacity, this stairlift is feature-packed. The constant-charge battery operation means that your stairlift works even through a power failure giving you peace of mind.

Technical information

✦ Applications: Residential, commercial*, indoor, straight-run stairs

✦ Standard Capacity: 350 lb (158 kg)

✦ Maximum Travel: 32' (9.75 m)

✦ Nominal Speed: 20 ft/min (0.10 m/s)

✦ Motor: 1/2 hp

✦ Fold-up width from wall: 13.75", 35 cm

✦ Fold-out width: 24.25", 61.6 cm

✦ Range of incline: 25˚ to 45˚ (public, USA), 25˚ to 55˚ (Residential Canada)

Features

✦Continuous charge system: The battery is charged along the rail to keep it ready-to-use at all times.

✦Smooth, quiet operation: Drive system provides a soft start and stop with minimal noise.

✦Master shut off will turn off if not used for an extended amount of time: Money saving option for electricity and battery life.

✦On-board controls and infrared (wireless) remote: Easy to use controls, remote can be used to call the chair up or down when needed.

✦Obstacle sensors: Stops the chair if it meets an obstruction for safe operation.

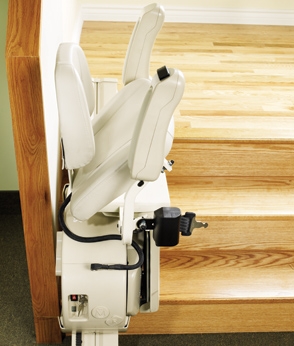

✦Other standard features: Continuous pressure operation, foldable footrest, folds up to less than 14" (35 cm) from the wall.

✦Standard finish options: Neutral beige carriage and wipe clean synthetic leather upholstery, neutral rail finish.

✦Safety features: Swivel and lock seat, seatbelt, non-skid footrest, obstacle sensors.

✦Warranty: 36 months parts.

✦Optional Configurations: Right or left side of stairs (field-reversible at time of installation)

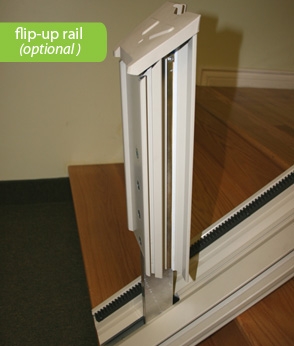

✦Flip-up rail: Optionally order your SL-1000 stairlift with a flip-up rail at the base of the stairs. If you have a door or entrance way at the base of your stairs, the rail folds up when the lift is not in use, leaving the entrance clear.

✦Other Options: Overspeed brake, motor brake, emergency stop button.

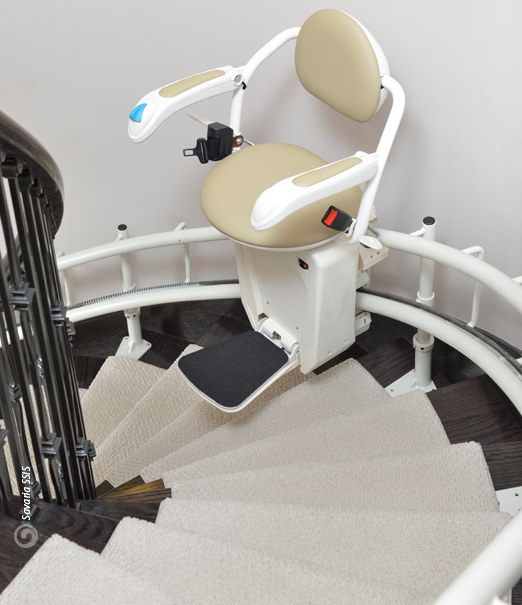

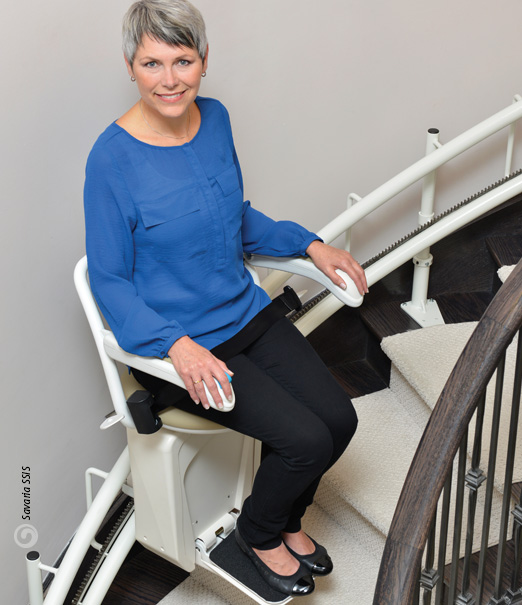

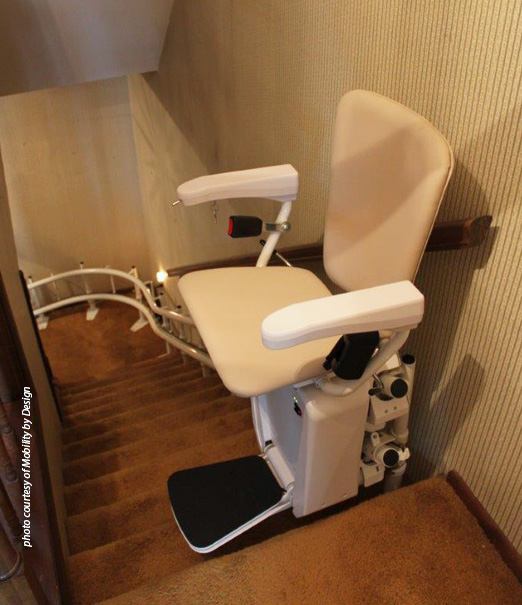

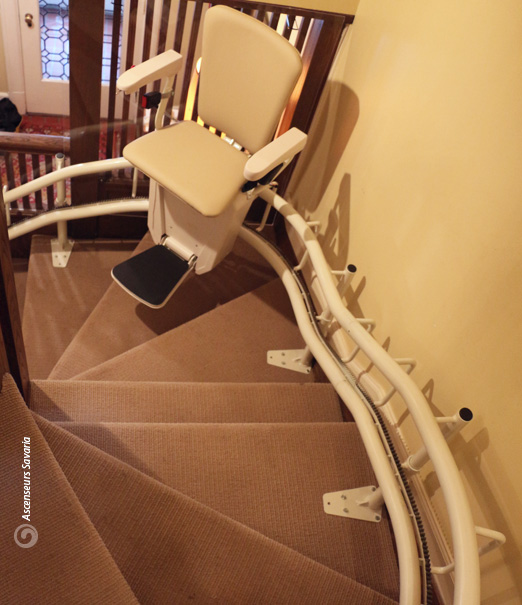

Stairfriend Curved Stairlift

Product Description

The Savaria Stairfriend stairlift can eliminate the barrier of stairs providing safe and easy access to another floor. The Stairfriend is designed to be installed on stairs that feature a curve, an intermediate landing, or when out-of-the-way parking is desired. Smooth riding, comfortable and reliable, the Savaria stairlift features a double rail system for strength and durability. The lift is easy to operate with controls on the armrest as well as two included radio frequency remote controls. Savaria custom bends the rail to your exact specifications based on computer-aided design software and photo measuring. This is all done with industry leading lead times. Choose from 2 seat designs to suit your taste and comfort needs.

Technical Information

✦Applications: Residential, commercial, indoor

✦Standard Capacity: 350 lb (160 kg)

✦Maximum Travel: 45' (13.72 m)

✦Nominal Speed: 20 ft/min, (0.1 m/s), 12 ft/min (0.06 m/s) through curves

✦Motor: 1/2 hp, 24V (DC)

✦Fold-up width: 15.5", 39 cm

✦Fold-out width: 24.5", 62 cm

✦Range of incline: 0˚ to 52˚

Features

✦Battery powered: operates through power interruptions with charging stations at top and bottom and optional intermediate landings

✦On-board controls: with soft start and smooth stop operation, seat swivels and locks into position for safe boarding and deboarding, retractable seat belt

Specifications

✦Radio frequency remote controls: offer greater range and control of device from other rooms

✦Overspeed governor and obstruction sensors: to stop the chair if it meets an object in both up or down travel directions

✦Reliable rack and pinion drive: with sturdy, twin steel tube rail construction

✦Custom-built: for curves, turns, landings and parking, and can be mounted on either side of stairs

✦Onboard diagnostics: to identify any service issues

✦Finish options: choice of seat with wipe-clean synthetic leather

✦Warranty: 36 months parts

✦Options: Choice of seat, 90˚ or 180˚ parking, top or bottom overrun, keyless access, emergency stop button, and extra long seatbelt

K2 Stairlift

Product Information

The Savaria K2 straight stairlift features the most compact folded depth on the market, keeping your stairs clear when the lift is not in use. Smooth-riding with a comfortable seat, the K2 stair lift transports you over the barrier of stairs, giving you the freedom to stay in the home you love. With a 350 lb capacity* and adjustable arm width, the K2 is well-suited to a wide range of comfort needs. Obstruction sensors, a retractable seat belt and overspeed governor all provide added safety features. The lift operates on a battery powered system with built in charging, that allows the lift to operate several times even during a power failure.

Features

✦Applications: Residential, indoor, straight-run stairway

✦Standard Capacity: 350 lb* (159 kg)

✦Maximum Travel: 32 ft (9.75 m)

✦Travel speed: 15 ft/min (0.08 m/s)

✦Motor: 1/3 hp, 24 VDC power that charges on standard household power

✦Fold-up width: 10.75" (27.3 cm)

✦Fold-out width: 20.5" (52 cm)

✦Range of incline: 30˚ to 55˚

Technical Information

✦Ultra slim: Folded size of only 10.75", the smallest profile on the market to keep the unit out of the way when not in use

✦Quiet, smooth-riding operation: From the rack and pinion drive system

✦Battery operated: Built-in charging on the top and bottom of the rail so the chair can be used several times even through a power failure

✦LED status lights: To advise of any issues

✦Obstacle sensor system: On the carriage and footrest to stop the chair if it meets an obstacle

✦Safety features: Swivel and lock seat at top landing, retractable seat belt, anti-slip footrest, obstacle sensors

✦Easy operation: Includes 2 infrared remote controls plus toggle switch on arm rest

✦Comfortable and durable seat: With width-adjustable arms up to 20" wide

✦Fast installation: To enjoy your stair lift quicker

✦Warranty: 36 months parts
